Academic Works

Undergraduate - Linear Induction Motor using Magnetic Levitation

This project was done during my final year of undergraduate study. Tools used: LTSpice

Objectives

Improving the thrust capability of Linear Induction Motor using magnetic levitation coils on the rotor
Understand principles of winding a motor and designing an electro-magnet for magnetic levitation
Controlling the motor using Power Electronic Devices

Summary

Testing of Stator Levitation Coils

Testing Levitation using multiple stator coils

Operational LIM using Magnetic Levitation

Graduate- Design of 4 stage Operational Amplifier

This is a course work project in the area of Analog Devices. This project is intended to design an Op-Amp with pin configuration equivalent to 741 and

should give maximum Open-Loop gain as possible.

Objectives

Design an op-amp with same pin configuration of 741
The open-loop gain should be high as possible

Tools: LTSpice and ICAP4 simulations

Summary of Results

Graduate- Other Course Work Projects

Power Electronics

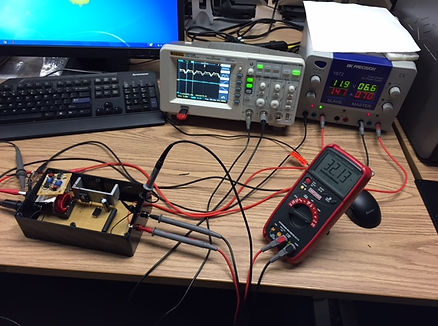

A project on Step-Up Chopper is performed as a part of course work submission. A 12V to 30V step-up chopper is simulated using MATLAB and the practical design is realized using components.

Tools: MATLAB

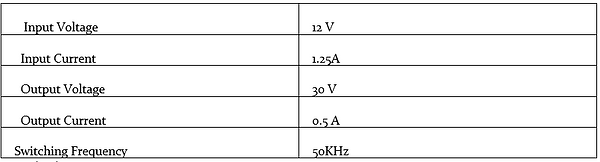

Summary of Results
